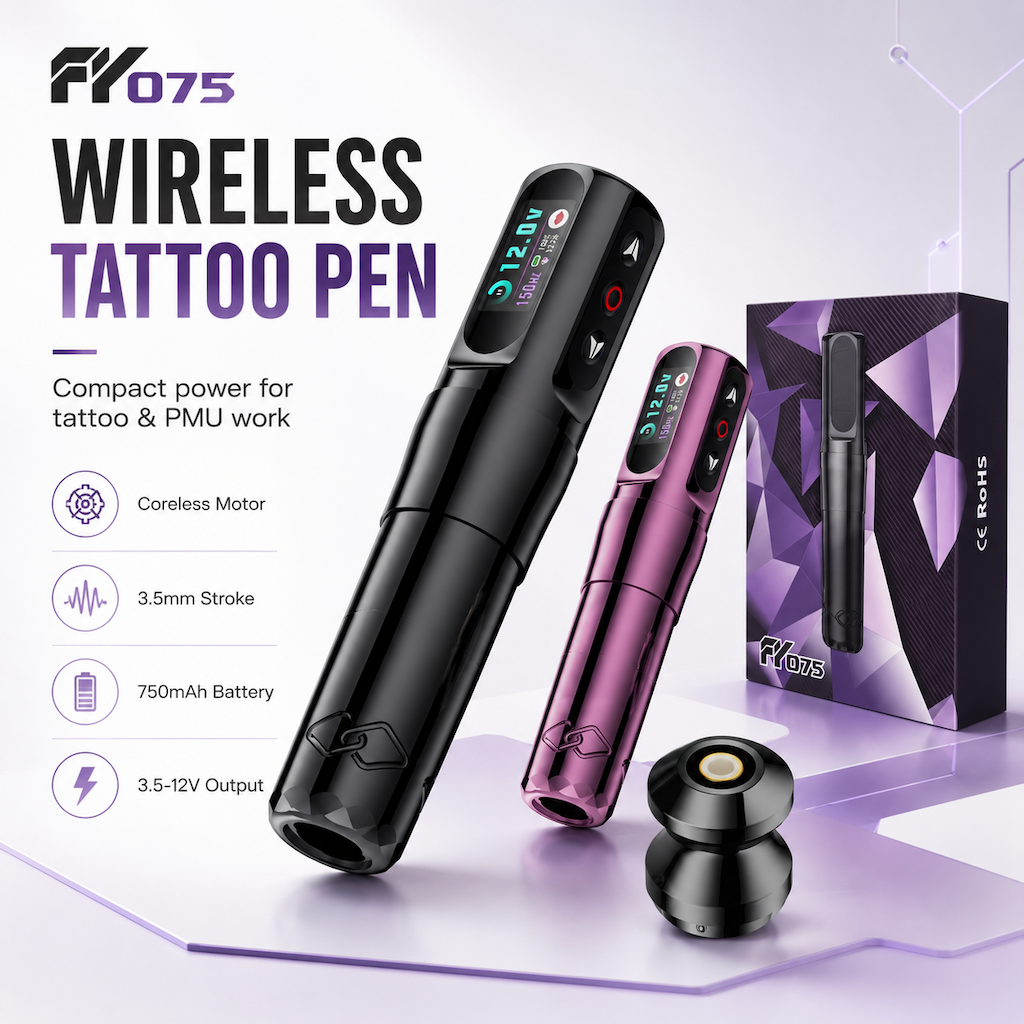

Hybrid Type Wirelss Tattoo Machine & Eyebrow Tattoo Pen, FY075, Memory Mode, Jump Start

Description

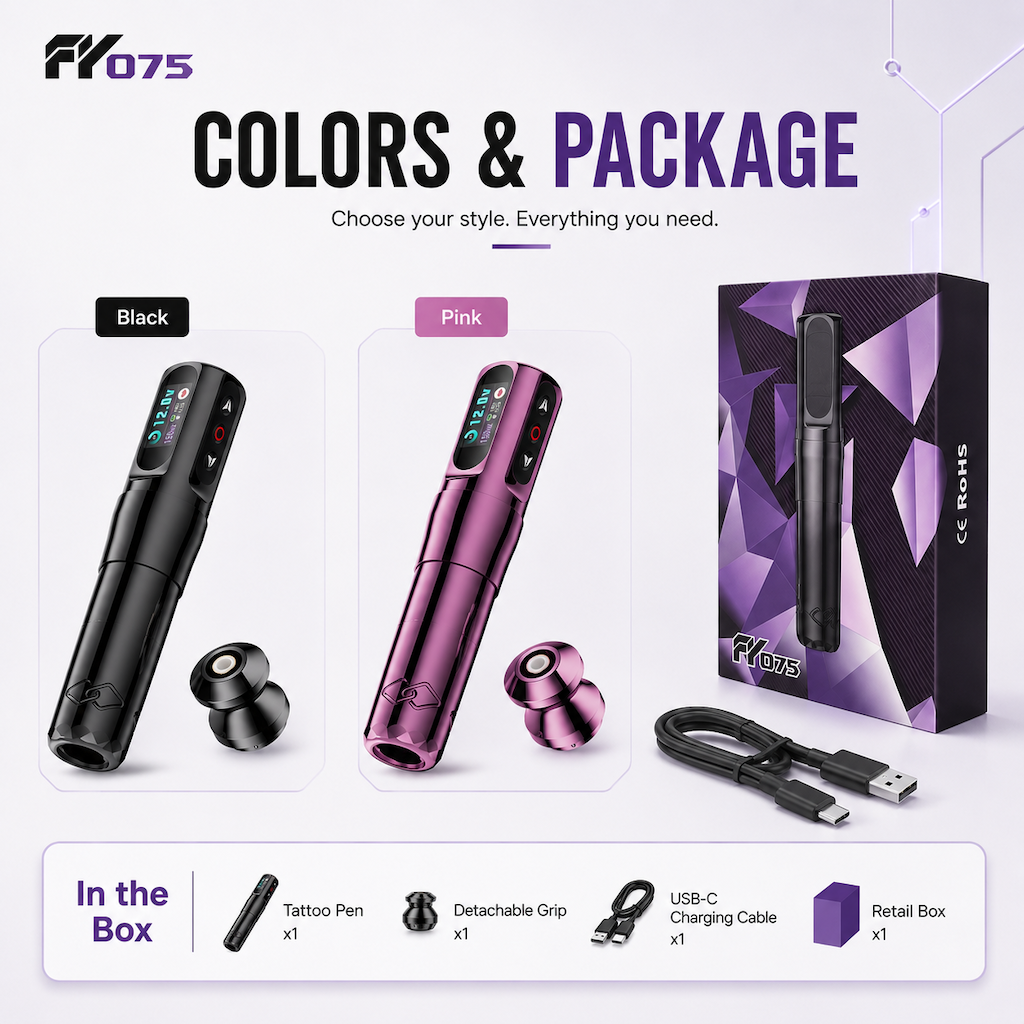

Product Parts

I: Color Screen Battery
II: Motor Handle
III: RCA Adaptor

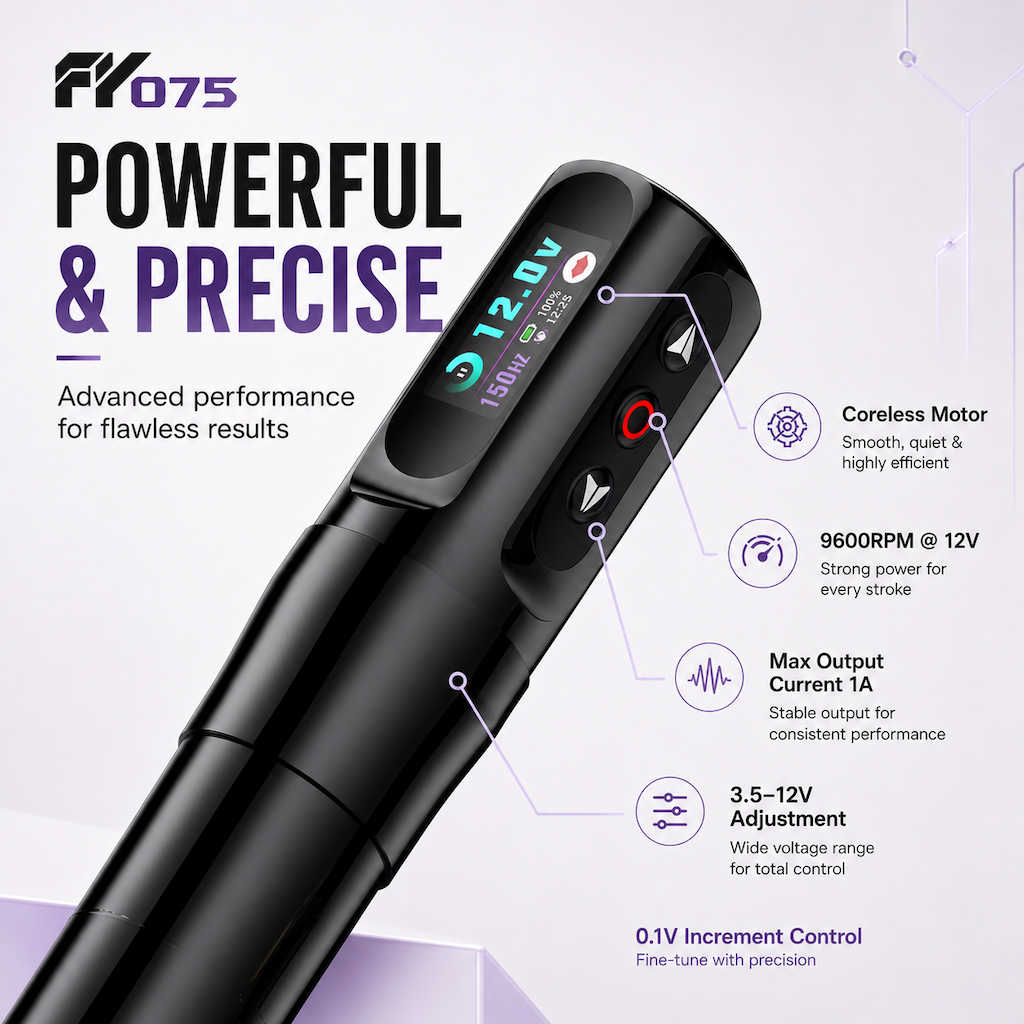

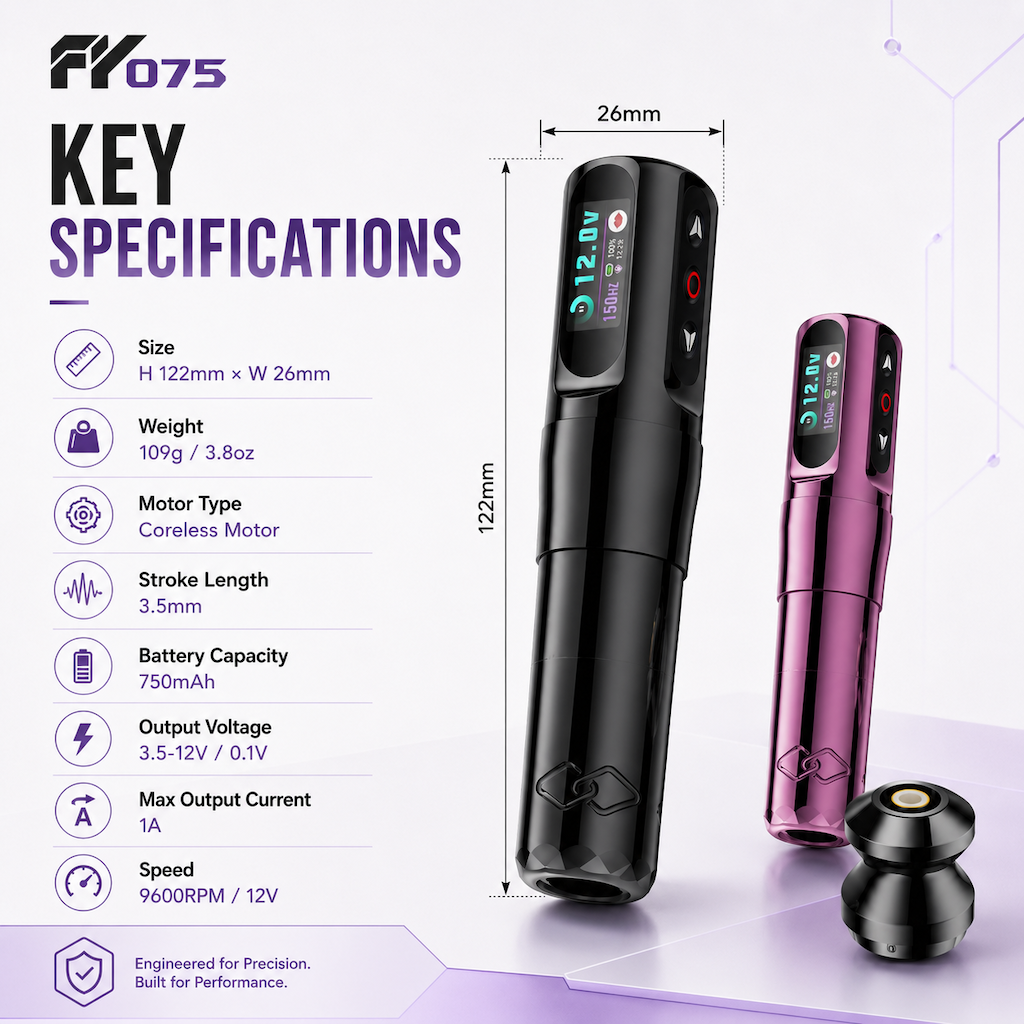

Specifications

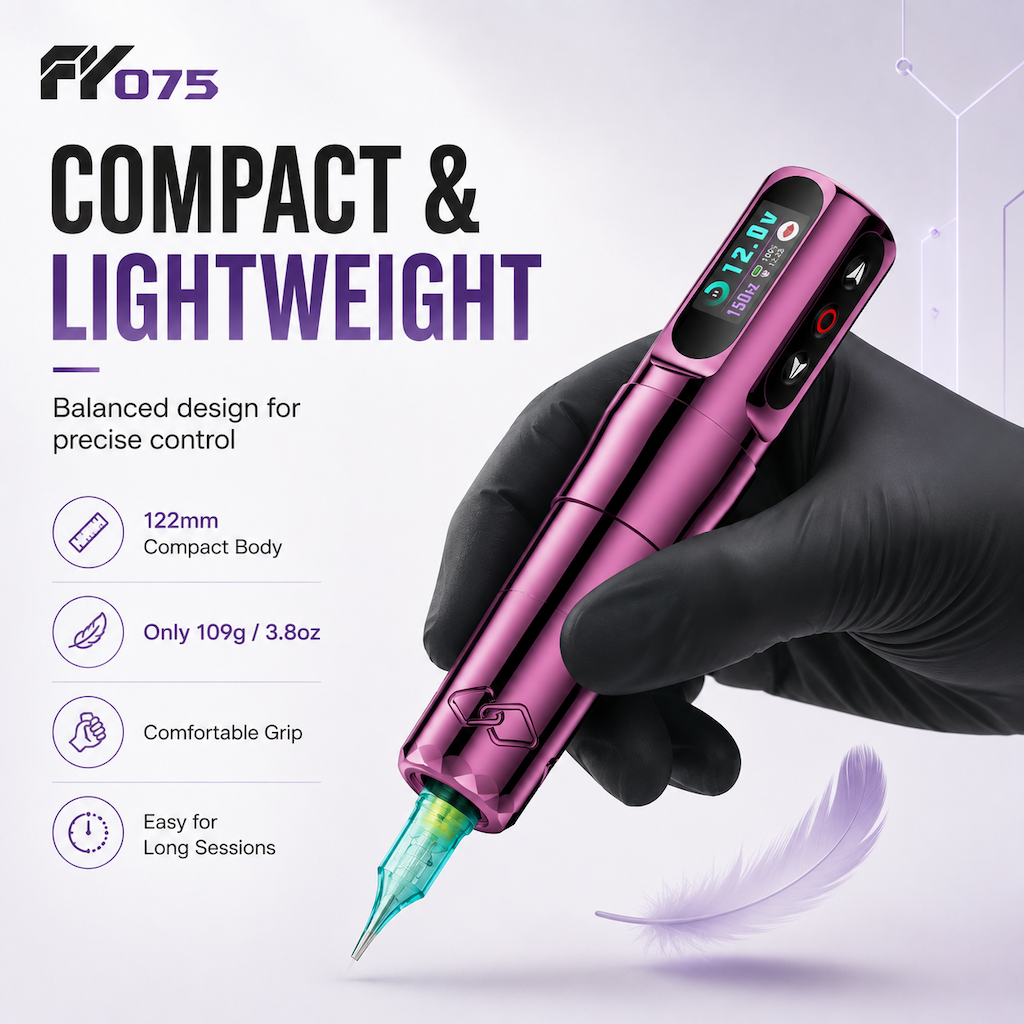

Machine Size: H 122mm × W 26mm
Machine Weight: 109g / 3.8oz
Motor Type: Coreless Motor
Needle Stroke: 3.5mm
Battery Capacity: 750mAh
Output Voltage: 3.5–12V / 0.1V
Maximum Output Current: 1A
Output Speed: 9600RPM / 12V
Plugging Torque: 308 ±10% g.cm
Charging Input: USB-C 5V⎓1A
Recommended: Use the included charging cable.

Key Operation

1. When the machine is turned off, long press the K2 button for 2 seconds to turn it on. The machine will enter normal working mode without Jump-Start function.
2. When the machine is turned off, quickly double-click the K2 button to turn it on. The machine will enter working mode with Jump-Start function.
3. When the machine is on, press the K2 button once to start or stop the motor.
4. When the machine is on and the motor is off, press K1 or K3 to select the memorized voltage value for different working modes.
5. When the machine is on and the motor is off, long press K1 or K3 to set the current memory voltage value.
6. When the machine is on and the motor is running, press K1 or K3 once to fine-tune the output voltage.
7. When the machine is on and the motor is running, long press K1 or K3 to quickly adjust the output voltage.

Display Screen

B: Memory Value Icon — Lip Tattoo / Eyebrow Tattoo / Body Tattoo
C: Jump-Start Icon — Purple: No Jump-Start / Red: Jump-Start
D: Battery symbol and remaining battery percentage
E: Current output voltage value
F: Motor start/stop indicator
G: Motor running time
H: Motor frequency detection value

Additional Notes

1. When the machine is turned on and the motor is off, it will automatically shut down after 5 minutes of standby.
2. When the battery is charging, the motor will not work and button operation is disabled.
3. Whether the machine is turned off or on, plugging in the charger will make it enter charging mode directly.

Protection Tips

LOW POWER: Low battery protection alert
OVERLOAD: Motor overload protection alert
SHORT OUT: Motor short circuit protection alert

Please Note

1. Store the machine in a cool and dry place, away from children.
2. Use a 5V adapter with at least 1A output to charge the battery through the Type-C port.
3. To extend battery life, unplug the charging cable in time after the battery is fully charged.
